3D printing is incomplete without these two factors, which makes the printing more rigid, durable and more dense, more leak proof, and heavier.
We are talking about Infill ratio & Wall Loops. Lets talk about these in this post. If you haven't read our first blog of our intro, you can click here to read it back, and dont know about filaments then you can click here.
So Lets Begin.
What is an Infill ratio?
Infill Ratio, also known as Infill Density, is a type of percentage which helps to fill a model internally to make it more solid. The more percentage you add the more dense model became and more solid it became. It ranges between 0-100%, and more percentage you add the infill pattern gets closer, and make your model more heavier
There are various types of infill given below:
Concentric Rectilinear
Grid
Line
Cubic
Triangles
Tri-Hexagon
Gyroid
Honeycomb
Adaptive Cubic
Aligned Rectilinear
3D Honeycomb
Hilbert Curve
Archimedean Chords
Octagram Spiral
Support Cubic
Lightning
Cross Hatch
Zig Zag
Crossed Zag
Locked Zag
Let me explain each of these
Gyroid: A wave-like 3D pattern that provides identical strength in all directions. It is highly favored for functional parts using PLA+ or PETG because it never crosses over itself on a single layer, eliminating nozzle scraping.

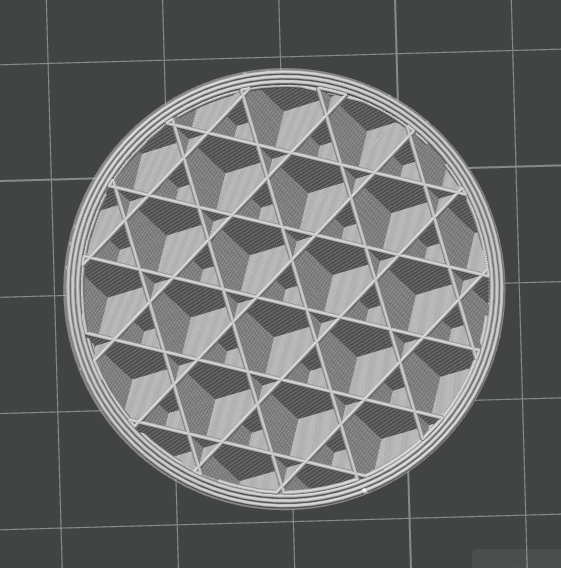

Cubic: Generates stacked, alternating pyramids. It offers excellent multi-axis strength and speeds up the printer since it features straight line movements.
Adaptive Cubic: Same structural properties as Cubic, but it grows less dense deep inside the print and more dense right before the top "roof." It is perfect for larger functional models to save filament.
Support Cubic: A specialized variation that shrinks the infill strictly to areas that support the upper internal layers, leaving the core largely empty.
Grid: Standard intersecting squares. It is very fast and vertically rigid, but because the lines cross over each other on the same layer, it can cause the nozzle to scrape over plastic bumps.
Line: Parallel lines printed in a single direction per layer. It uses minimal material and prints incredibly fast, making it ideal for quick draft prints.
Rectilinear: Alternates parallel lines by 90 degrees every layer. It gives you the speed of Grid without the risk of nozzle collisions.
Aligned Rectilinear: Parallel lines that stay strictly stacked in the exact same direction on every single layer. Use this with caution, as top surfaces can sag if they run the same direction as the infill
Cross Hatch: Replicates the speed of Line/Rectilinear but rotates periodically to build strength. It is designed to replace Gyroid for fast, quiet printing on high-speed machines without vibrating the desk.
Zig Zag: A continuous, non-stop zig-zag line. It eliminates constant retractions and toolpath pauses, allowing the extruder to run at maximum speed.
Cross Zag: A variation of Zig Zag that crosses paths diagonally. It adds side-to-side shear resistance while keeping printing speeds high.
Locked Zag: A smart, specialized pattern featuring a dense outer "skin" wrapped around an internal zig-zag skeleton. It allows you to trick the printer into using a cheaper material for the inner structural core while preserving surface finish.
Triangles: Three sets of intersecting lines that create vertical pillars. It offers immense rigidity along the outer walls.
Tri-Hexagon: Interlocking triangles and hexagons. It provides massive horizontal resistance against twisting or pulling.
Honeycomb: A classic 2D beehive pattern. It is highly rigid and impact-resistant, but it heavily increases print times and consumes about 25% more material.
3D Honeycomb: An updated version where the hexagon cells shift horizontally as they grow vertically, ensuring the part doesn't split easily along a single layer line.
Concentric: Traces the exact shape of your outer walls moving inward. It provides almost no internal rigidity, making it perfect for squishy items printed in flexible TPU.
Lightning: Generates internal support structures only where needed to hold up the ceiling of the print. It leaves the lower core completely hollow, saving massive amounts of time on decorative models like desk busts or figurines
Hilbert Curve: A complex, maze-like continuous line pattern.
Archimedean Chords: A spiral pattern radiating out from a central point.
Octagram Spiral: Star-burst pattern lines radiating outward
Infill Ratio percentage wise only for rectilinear sparse infill type
Wall Loops
What is a Wall loops?
Also known as Perimeter/Shells, Its a none other than number of outer wall loops, that makes the wall thicker only. In another words, a setting that dictates how many solid plastic outlines the printer draws to form the outer skin of your model before it starts filling the inside with infill
Examples of how they looks - 2 Wall Loop
4 wall Loop
6 wall Loop
Bonus Tip
Choosing the Right Infill Ratio
0% to 10%: Figurines, decorative items, or display-only prototypes (best paired with Lightning or Adaptive Cubic).
15% to 25%: The sweet spot for general use, everyday items, and standard structural parts (best paired with Gyroid or Cubic).
30% to 50%: High-stress functional parts, tools, or brackets.
60% to 100%: Rarely needed. Beyond 60%, adding more outer walls (perimeters) provides significantly more strength than simply packing more infill inside
